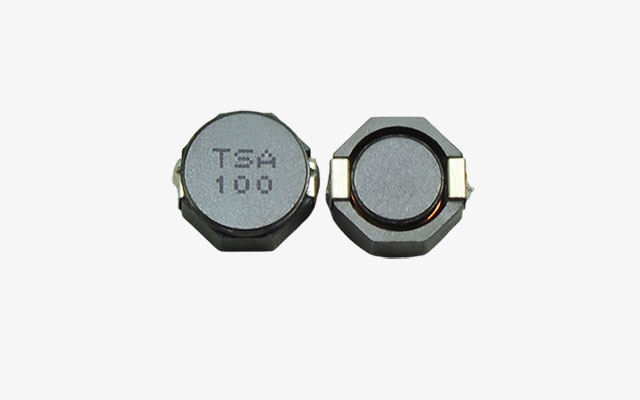

SDRH8D Series

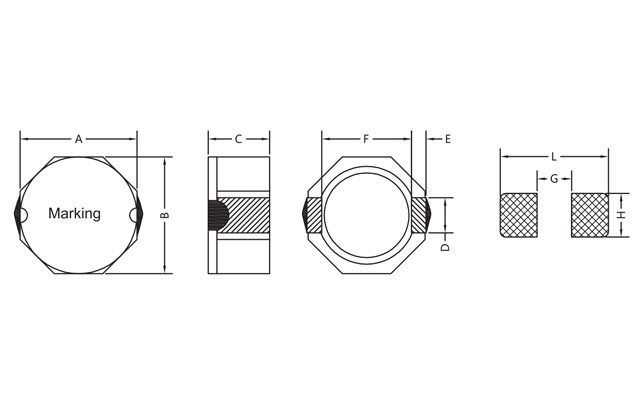

| Series | Dimensions(mm) | ||||||||
| A | B | C | D | E | F | L | G | H | |
SDRH8D28 | 8.0±0.3 | 8.0±0.3 | 3.0 Max | 2.5 | 1.2 | 6.3 | 10.1 | 6.1 | 2.8 |
SDRH8D38 | 8.0±0.3 | 8.0±0.3 | 4.0 Max | 2.5 | 1.2 | 6.3 | 10.1 | 6.1 | 2.8 |
| SDRH8D43 | 8.0±0.3 | 8.0±0.3 | 4.5 Max | 2.5 | 1.2 | 6.3 | 10.1 | 6.1 | 2.8 |
| Series | Dimensions(mm) | ||||||||
| A | B | C | D | E | F | L | G | H | |
SDRH8D28 | 8.0±0.3 | 8.0±0.3 | 3.0 Max | 2.5 | 1.2 | 6.3 | 10.1 | 6.1 | 2.8 |
SDRH8D38 | 8.0±0.3 | 8.0±0.3 | 4.0 Max | 2.5 | 1.2 | 6.3 | 10.1 | 6.1 | 2.8 |
| SDRH8D43 | 8.0±0.3 | 8.0±0.3 | 4.5 Max | 2.5 | 1.2 | 6.3 | 10.1 | 6.1 | 2.8 |
